DPA Paint Mist Filter Cotton / DPA Paint Mist Filter Bags

• Posted by wang july 9 hours ago Filed in Other #DPA Paint Mist Filter Cotton / DPA Paint Mist Filter Bags  8 views
  click to rate

  (For Paint Booths, Dry Filter Spray Booths, DPA Paint Mist Filtration Systems)

   1. Core Features

  ✅ Three-Stage Filtration System

  - Pre-filtration layer: Stainless steel mesh intercepts particles ≥100μm

  - Primary filtration layer: Gradient-density polyester fiber bags (6-12 bags)

  - Post-filtration layer: Fiberglass cotton captures escaped paint mist



  ✅ Ultra-High Filtration Performance

  - Paint mist capture efficiency: 95-99%

  - Initial resistance: 80-150Pa

  - Paint-holding capacity: 2.5-4kg/m²



  ✅ Smart Operation & Maintenance Design

  - Equipped with differential pressure monitoring system (±5% accuracy)

  - Optional automatic pulse-jet cleaning device

  - Fire resistance rating: DIN 4102 B1



  ✅ Industrial-Grade Durability

  - Frame material: Galvalume steel / 304 stainless steel

  - Solvent resistance: Passes xylene immersion test

  - Operating temperature range: -20℃ to 80℃



  2. Filtration Mechanism

  - Inertial Impaction: Paint particles collide with fibers and are captured.

  - Interception Effect: Gradient-density fiber layers progressively trap particles.

  - Adhesion: Resin-treated fibers enhance paint mist adhesion.

  - Electrostatic Adsorption: Electret treatment improves fine particle capture.

  3. Typical Applications

  - Automotive: Vehicle coating lines, bumper spraying

  - Rail Transit: Train carriage painting

  - Industrial Equipment: Construction machinery, agricultural equipment coating

  - Furniture Industry: Wooden furniture automated spraying lines

  - Electronics: Home appliance shell spraying

   4. Selection Guide

  Paint Type Compatibility

  - Water-based paint: Choose moisture-resistant filter bags

  - High-solid paint: Select thickened bags (600g/m²)

  - UV paint: Opt for UV-resistant models

  Airflow Calculation

  - Recommended face velocity: 0.5-1.0m/s

  - Formula: Q = 3600 × V × A × 0.7

  System Configuration

  - Pre-stage: G4 panel filter

  - Post-stage: Activated carbon adsorption unit (for VOCs treatment)

  5. Maintenance & Management

  Replacement Cycle

  - Standard conditions: 3-4 months

  - High-load conditions: 1-2 months

  Smart Monitoring

  - Alarm triggered at ≥400Pa differential pressure

  - PLC control system recommended

  Safety Protocols

  - Power must be disconnected during replacement

  - Discarded filter bags classified as hazardous waste (HW12 code)

  This translation maintains technical accuracy while optimizing readability for international audiences. Let me know if you'd like any refinements!

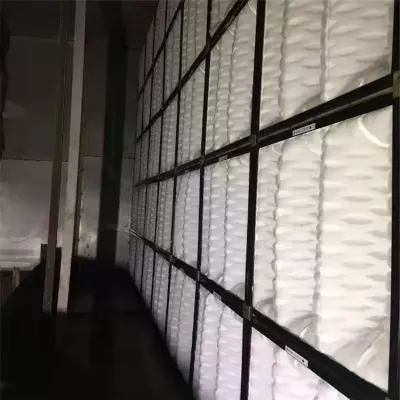

  DPA filter installation
